NA-14AB Electric Motor | Al Faisal HVAC

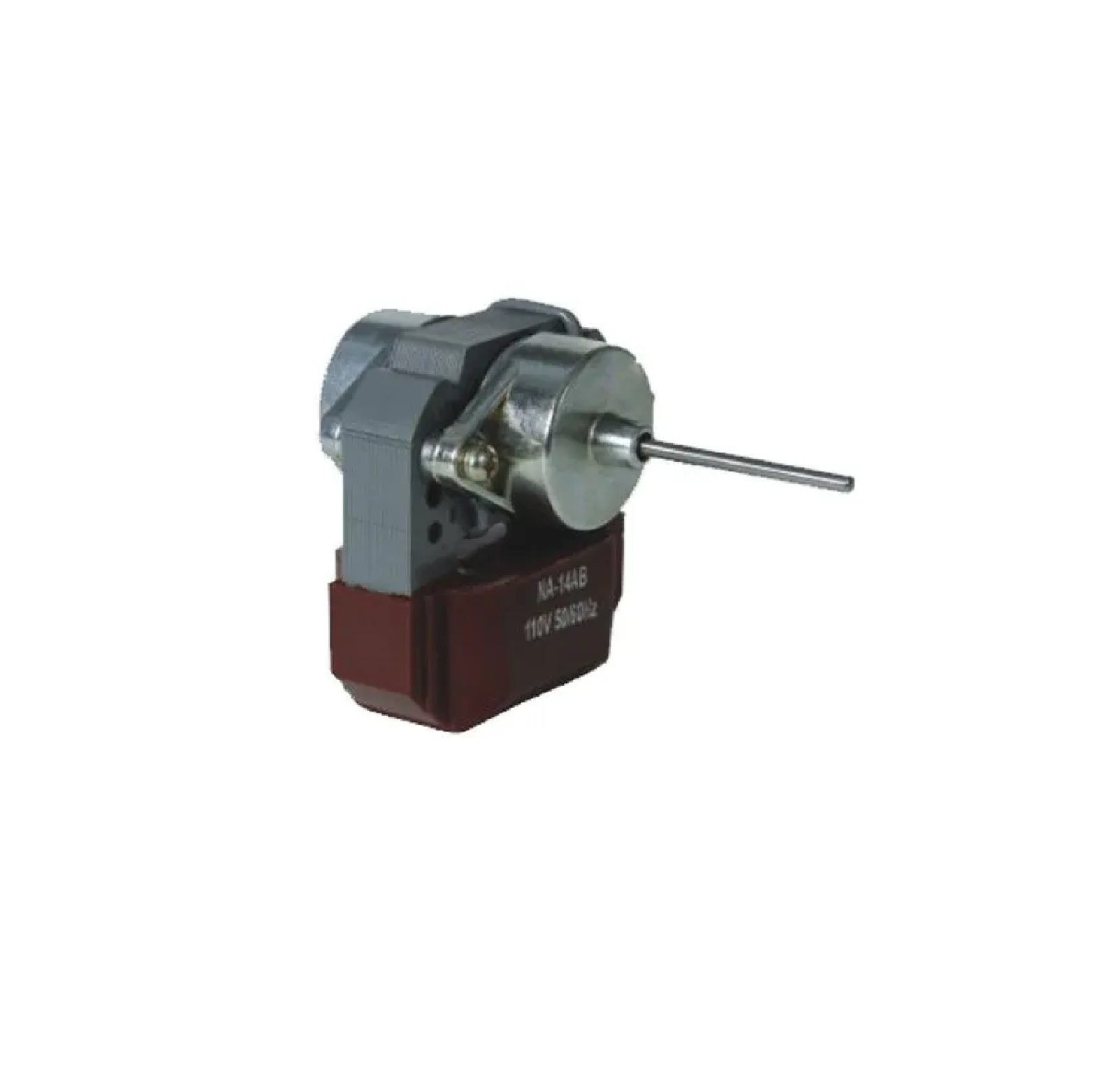

The Evaporator Fan Motor is available in two configurations: Two-pole and Four-pole. The Two-pole motor operates at voltages ranging from 100-250V and frequencies of 50/60Hz, with a fan diameter of Φ 100 to Φ 170 mm, input power between 5-20W, and a rotation speed of 1000-3000 rpm. The Four-pole motor supports voltages of 100-270V and frequencies of 50/60Hz, accommodates fan diameters from Φ 170 to Φ 300 mm, with an input power range of 20-50W and a rotation speed of 1200-1400 rpm. These motors are suitable for various applications, including condensate fan motors, GE fan motors, C-frame evaporator fan motors, exhaust fan motors, oven fan motors, synchronous motors, cross-flow fan motors, shake fan motors, gear motors, and more. For comprehensive HVAC solutions and expert service, contact Al Faisal HVAC.
