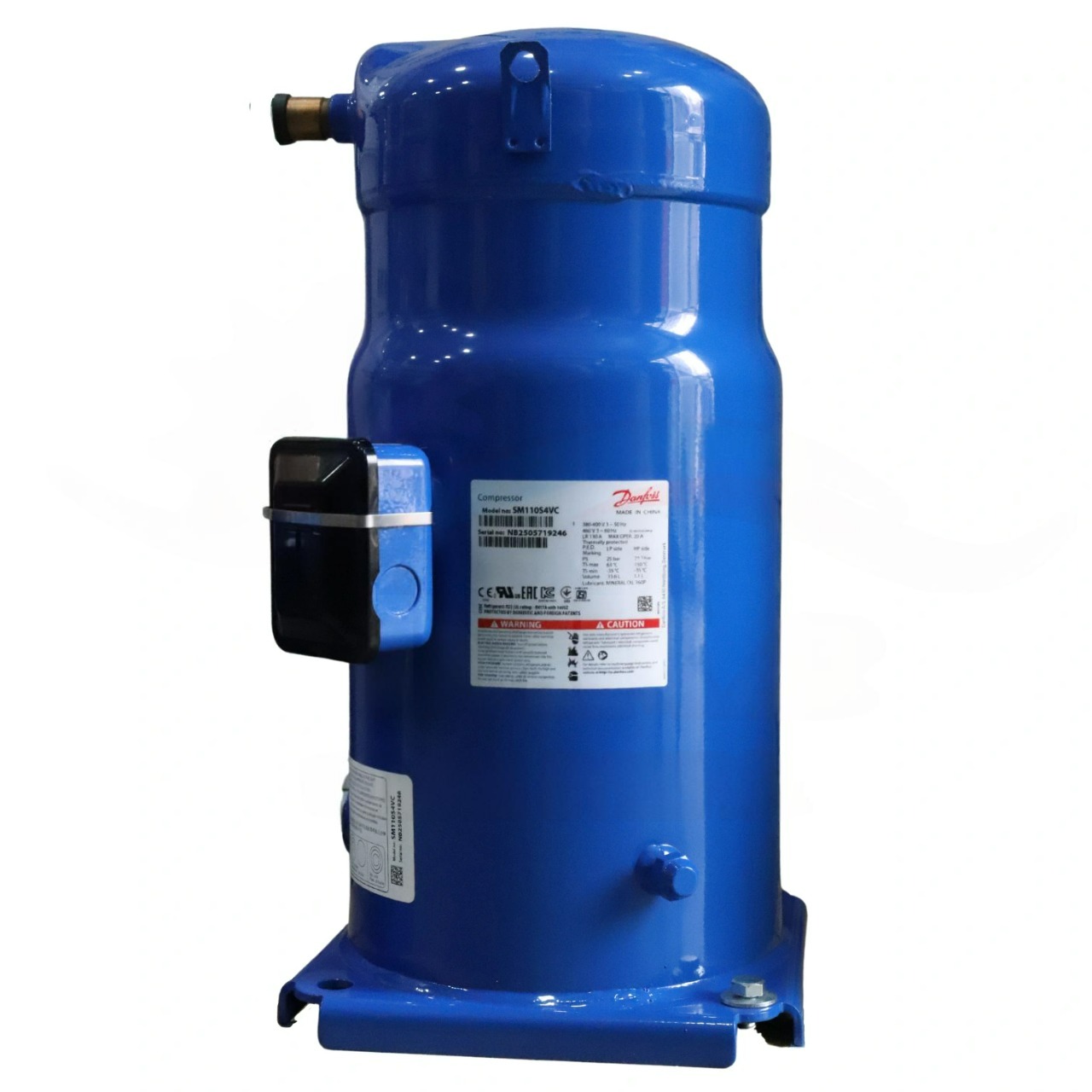

Danfoss Scroll Compressor SM110-4VI

Danfoss SM110-4VI
Model no: SM110S4VC

Network power supply [V/Ph/Hz]: 380-415/3/50 460/3/60

Categories: , Tag:

Why Buy From AlFaisalHVAC.com?

  • Biggest Payoneer A/C Spare Parts Stockist in the UAE
  • 100% Genuine & Tested Products, Bulk & Wholesale Order Support, Same Day Delivery
  • Trusted HVAC Supplier for 25+ Years
Add to quote

Description

Product Details

Gross weight 78.71 Kg
Net weight 73 Kg
Volume 0.23 Cubic.mtr
EAN 5702428839440
Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Blue
Configuration code Single
Connection type Brazed
Description SM110-4
Diameter [mm] 254 mm
Discharge connection height [mm] 515 mm
Discharge connection pipe size [in] 7/8 in
Discharge connection size [in] 7/8 in
Drawing number 8552037b
Economizer No
Factory HP [bar] 33 bar
Factory LP [bar] 25 bar
Family SM
Fitting standard ODF
Gauge port HP None
Gauge port LP Schrader
Generation code C
Glass mounting Threaded
Glass torque [Nm] 50 N-m
GP LP torque [Nm] 15 N-m
High side max pressure (Ps) 30.2 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 1.1 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 440 V
High value of voltage range at 60Hz [V] 506 V
Low side max pressure (Ps) 25 bar
Low Side TS Max 63 °C
Low Side TS Min -35 °C
Low Side Volume 13.6 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 342 V
Low value of voltage range at 60Hz [V] 414 V
LRA 130 A
Maximum Operating Current [MOC] 20 A
MCC 22 A
Model number SM110S4VC
Motor protection Internal overload protector
Mounting torque [Nm] 21 N-m
Network power supply [V/Ph/Hz] 380-415/3/50 460/3/60
Nominal cooling capacity 60 kBTU/h 107.85 kBtu/h
Nominal cooling capacity at 50Hz 23.5 kW
Nominal cooling capacity at 60Hz 31.6 kW
Number of starts per hour [Max] 12
Oil charge [L] 3.25 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 48 N-m
Oil reference 160P
Oil type Mineral
Packaging height [mm] 596 mm
Packaging length [mm] 470 mm
Packaging weight [Kg] 78 kg
Packaging width [mm] 370 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw 4.8 mm
Product group Hermetic compressors
Product Name Description Scroll compressor SM
Refrigerant charge [kg] [Max] 10 kg
Refrigerants R22
Relief valve None
RLA 15.7 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 178 mm
Suction connection material –
Suction connection pipe size [in] 1 3/8 in
Suction connection size [in] 1 3/8 in
Swept volume [cm3] 144.2 cm³
Technology Scroll
Test dif [bar] [Max] 24 bar
Test HP [bar] [Max] 32 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 2 N-m
Torque power [Nm] 3 N-m
Total height [mm] 558 mm
Type SM110
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 1.05 Ohm
